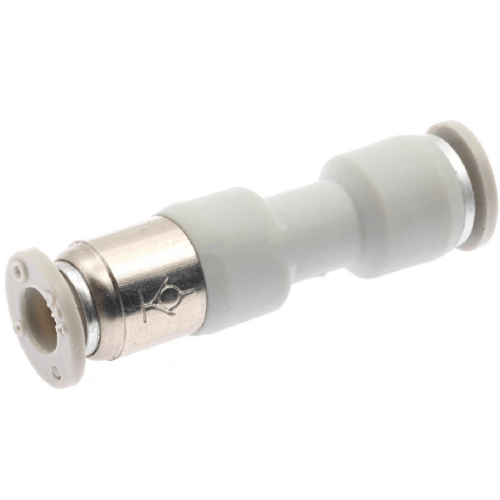

Airtac X-ASPU Connector - Tube End Type Quick Connect Coupling X-ASPU10
$6.42
Regular price
$13.92
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ASPU10
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-ASPU10 Push-to-Connect Tube Fitting Technical Details
- Model: X-ASPU10
- Type: Straight thread connector (tube end type)
- Applicable tube OD: 10mm (±0.3mm tolerance)
- Thread specification: G1/8 (BSPP)
- Material: Nickel-plated brass body, NBR seals
- Operating temperature: -20℃ to 80℃ (continuous use)
- Pressure range: 0-1.0 MPa (14.5-145 PSI)
- Leakage rate: ≤3 bubbles/min under 0.5MPa pressure
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Installation torque: 10-12 N·m (thread connection)
- Certifications: RoHS compliant, REACH tested
- Weight: 28g ±1g
- Dimensions: 32mm(L) × 16mm(W) × 16mm(H)
- Surface treatment: Electrolytic polishing (Ra≤0.8μm)
- IP rating: IP40 (dust protected)
High-flow pneumatic coupling with positive click-lock mechanism, featuring 360° rotatable collar for tool-free tube installation. The stepped collet design ensures vibration-resistant sealing even under pulsating pressure conditions. Compatible with PU, nylon, and polyethylene tubing.
Ideal Applications:
- Modular pneumatic circuit assembly lines
- CNC machine tool coolant systems
- Semiconductor manufacturing gas lines
- Mobile hydraulic test benches
- Food-grade CO₂ distribution systems
Installation protocol:
Always use backup wrench on hex flats during assembly. Maximum 1/4 turn
adjustment after initial hand-tightening. Perform pressure test at 1.25×
working pressure after installation.
Avoid overtightening - excessive torque may
deform sealing surface. Not recommended for ethylene glycol mixtures
or phosphate ester fluids.
| Property | Property Value |
|---|---|
| sku | X-ASPU10 |
