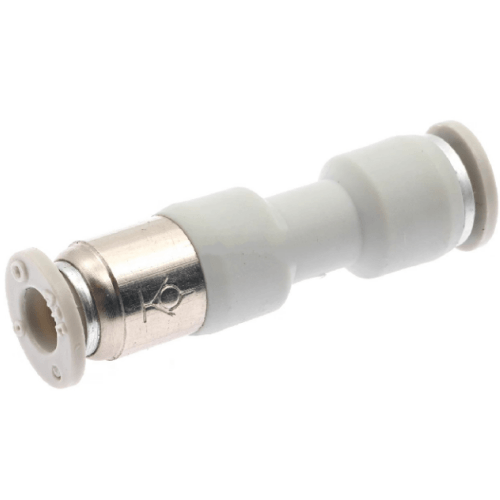

AirTAC X-ASPU12 Push-to-Connect Fitting (Tube End Type) Specifications

• Model: X-ASPU12
• Type: Straight thread swivel push-in fitting
• Thread standard: G1/8 (BSPP)
• Material: Nickel-plated brass (Stainless steel variant available)
• Operating pressure: 0.05-1.0 MPa
• Temperature range: -20℃ to 80℃ (continuous use)
• Tube OD compatibility: 12mm (φ12±0.2mm)
• Seal material: HNBR (Hydrogenated Nitrile) with anti-vibration design
• Vibration resistance: ≤10Hz frequency, ≤1.5mm amplitude
• IP rating: IP54 (dust and splash resistant)
• Weight: 68g ±2g
• Dimensions: 38mm(L) × 24mm(W) × 40mm(H)
• Insertion force: ≤60N (with lubrication)
• Release force: Requires 2.5mm collar pull-back with 10N minimum force
• Certifications: RoHS compliant, REACH SVHC-free

High-cycle pneumatic connector featuring zero-leak O-ring seal and 360° rotatable port alignment. The chrome-plated brass body resists chemical corrosion while maintaining 500,000+ insertion cycles. Integrated dust cap included for port protection during storage.

Ideal Applications:

• Modular pneumatic assembly lines requiring quick reconfiguration
• Robotic arm end effectors with frequent tool changes
• CNC machine tool coolant control systems
• Food processing equipment (stainless steel version)
• Electric vehicle battery cooling circuits

Installation protocol: Cut tube ends square (90°±0.5°) and deburr before insertion. For high-vibration environments, apply 2 drops of AirTAC P80 silicone-free lubricant to tube end. Maximum allowable angular misalignment: 3°.

Compatibility note: Not suitable for acetylene or oxygen systems. Avoid using with phosphate ester-based hydraulic fluids. Maximum permissible momentary pressure spike: 1.5MPa for ≤100ms.
