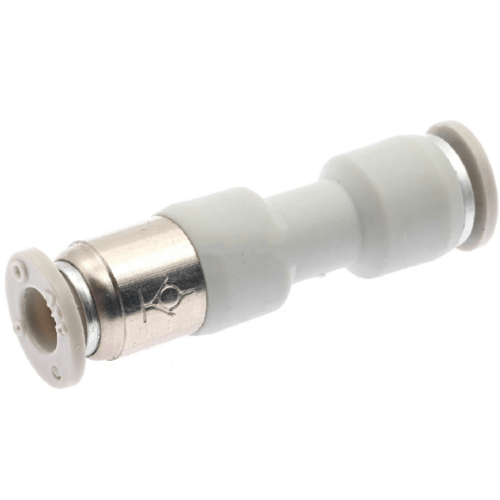

Airtac X-ASPU Connector - Tube End Type Quick Connect Coupling X-ASPU4
AirTAC X-ASPU4 Push-to-Connect Fitting Specifications
- Model: X-ASPU4 (Tube OD 4mm Series)
- Type: Straight thread-tube-end quick connector
- Body material: POM + Copper alloy (nickel plated)
- Tube compatibility: PU/Nylon/PE tubes (OD 4mm ±0.1mm)
- Thread specification: M5×0.8 external thread
- Operating pressure: 0.3-1.5 MPa
- Burst pressure: ≥4.5 MPa
- Temperature range: -5℃ to 80℃
- Seal material: HNBR (Hydrogenated Nitrile)
- Flow rate: 12 L/min (at 0.5MPa)
- Insertion force: ≤30N
- Extraction force: 15-50N (with tube lock engaged)
- Weight: 9.8g ±0.5g
- Dimensions: 22mm(L) × 16mm(W) × 28mm(H)
- IP rating: IP40 (dust protected)
Premium push-to-connect fitting with dual-stage sealing (O-ring + tube grip) for leak-free pneumatic connections. Features brass core construction with chemical-resistant POM housing, compatible with ISO 12151-2 standards. The automatic tube retention mechanism ensures vibration resistance up to 20Hz frequency.
- Pneumatic cylinder port connections
- Air preparation unit installations
- Robotic end-effector tooling
- Medical gas line quick disconnects
- Laboratory instrumentation hookups
- CNC machine pneumatic circuits
Installation protocol:
Cut tube ends square (90°±2°) using dedicated cutter. Insert fully until audible click.
For disassembly: Push collet sleeve fully inward while pulling tube out.
Max allowable angular misalignment: 3°.
Not recommended for hydraulic fluids or aggressive chemicals.
Avoid UV exposure - POM degrades under direct sunlight.
