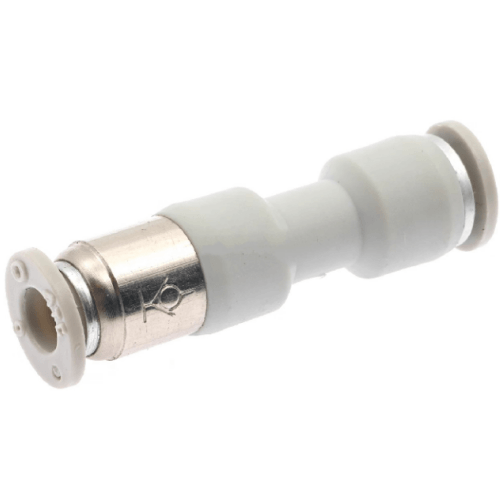

Airtac X-ASPU Connector - Tube End Type Quick Connect Coupling X-ASPU6
$4.67
Regular price
$12.17
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ASPU6
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-ASPU6 Push-to-Connect Fitting (Tube End Type) Specifications
- Model: X-ASPU6
- Type: Straight thread-to-tube quick connector
- Thread standard: G1/8 (M5 optional)
- Tube OD compatibility: 6mm (±0.3mm tolerance)
- Material: Stainless steel (SUS303) body with PPS polymer sleeve
- Seal material: HNBR rubber (high nitrile)
- Operating pressure: 0.3-1.5 MPa
- Temperature range: -5℃ to 80℃
- Burst pressure: ≥5 MPa
- Flow coefficient (Cv): 1.8
- Leakage rate: <0.1 Nl/min @ 0.5 MPa
- Installation orientation: Vertical/horizontal (360° rotatable)
- Weight: 52g ±2g
- Dimensions: 30mm(L) × 12mm(Dia) × 20mm(Hex)
Ergonomic push-to-connect fitting with 90° tube insertion angle indicator. Features anti-vibration lock mechanism and chemical-resistant sealing, designed for high-cycle pneumatic systems. Includes built-in tube grip teeth for 4-6mm wall thickness tubes.
Industrial Applications:
- Modular pneumatic assembly lines
- Robotic end effector tooling connections
- CNC machine coolant line junctions
- Semiconductor gas delivery systems
- Mobile hydraulic test benches
Installation protocol:
Cut tube ends square (max 0.5° bevel), insert until audible click.
Perform pull-out test with 50N force. Replace sleeve after 500+ cycles.
