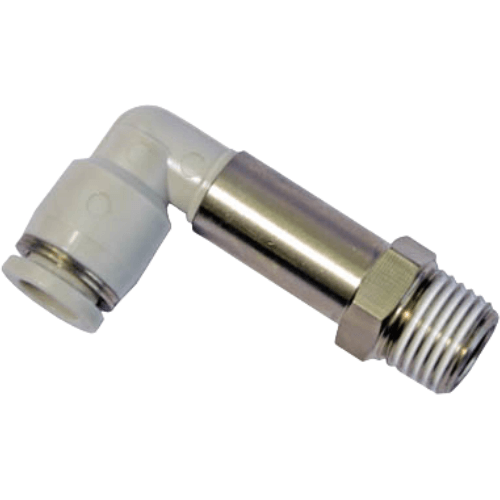

Airtac X-EPLL Connector - L-Type Extended Thread Two-Way X-EPLL1003
$4.67
Regular price
$12.17
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPLL1003
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPLL1003 L-Type Extended Thread Tee Fitting Specifications
- Model: X-EPLL1003
- Type: L-shaped tee with extended male threads
- Thread standard: Metric (M5×0.8)
- Material: Nickel-plated brass (C3604)
- Seal type: Integrated O-ring (NBR 70° hardness)
- Pressure rating: 0.05–1.5 MPa
- Temperature range: -20℃ to 80℃ (continuous use)
- Thread engagement length: 8±0.5mm
- Surface treatment: Electroless nickel plating (5-8μm)
- Weight: 18.5±0.3g
- Dimensions: 21.5mm(L) × 16mm(W) × 24mm(H)
- Port configuration: 1/8" BSPP female x M5 male
- Vibration resistance: ≤15Hz @ 2mm amplitude
Precision-machined L-shaped pneumatic connector featuring anti-vibration thread design and chemical-resistant plating. The extended male threads enable secure engagement in deep mounting holes while maintaining 360° sealing integrity. Compatible with ISO 1179-2 and JIS B8381 standards.
Typical Applications:
- Compact pneumatic manifolds in robotics
- Multi-axis actuator connections
- CNC machine tool air circuits
- Medical equipment gas line branching
- Semiconductor manufacturing systems
Installation guidance:
Apply 0.2-0.5Nm torque during assembly. Use thread sealant only on male ports.
Avoid overtightening - maximum 1.2 rotations after hand-tight position.
Compatible with 4mm OD tubing (push-in type).
| Property | Property Value |
|---|---|
| sku | X-EPLL1003 |
