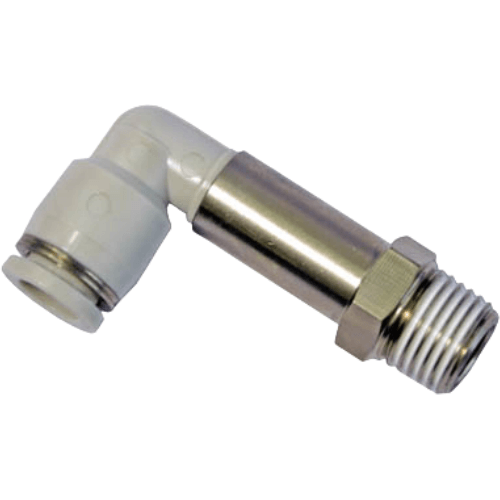

Airtac X-EPLL Connector - L-Type Extended Thread Two-Way X-EPLL10M16
$4.67
Regular price
$12.17
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPLL10M16
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPLL10M16 L-Type Extended Thread Elbow Fitting Specifications
- Model: X-EPLL10M16
- Type: L-shaped 2-way extended thread elbow
- Thread specification: M16×1.5 (male threads on both ends)
- Material: Lead-free brass with electroless nickel plating
- Seal type: Precision ground metal-to-metal seal + auxiliary NBR O-ring
- Pressure rating: 0.05-1.5 MPa (7-217 psi)
- Temperature range: -5℃ to 60℃ (23℉ to 140℉)
- Fluid compatibility: Air, water, hydraulic oil (ISO VG32 or lower)
- Surface hardness: ≥HV300
- Corrosion resistance: 96hrs neutral salt spray test passed
- Weight: 48g ±2g
- Dimensions: 42mm(L) × 28mm(W) × 35mm(H)
- Hex size: 19mm wrench flat
- Thread engagement depth: 12mm (minimum)
High-density forged construction elbow designed for high-vibration environments. Features triple-secure sealing (metal taper + O-ring + thread sealant groove) and 360° rotatable body for flexible orientation adjustment. Meets ISO 1179-1 standard for metric connectors.
Typical Applications:
- Pneumatic cylinder port connections in robotic arms
- Hydraulic power unit piping transitions
- CNC machine tool lubrication line fittings
- Compressed air systems with pulsation dampening requirements
- Mobile equipment fluid power circuits
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (do not overlap O-ring area).
Tighten to 25-30 N·m torque using crowfoot wrench. Maximum re-use cycles: 5 times.
Avoid using with:- Aggressive chemicals (pH <2 or >12)
- Gases containing solid particles >15μm
- Pulsed pressures exceeding 2.5 MPa
