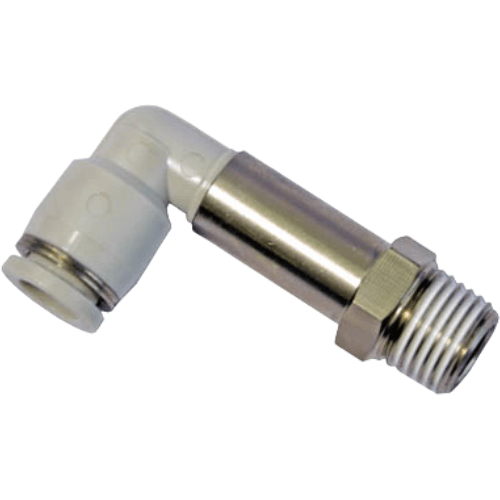

Airtac X-EPLL Connector - L-Type Extended Thread Two-Way X-EPLL10M20
$5.70
Regular price
$13.20
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPLL10M20
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPLL10M20 L-Type Extended Thread Elbow Fitting Specifications
- Model: X-EPLL10M20
- Type: L-shaped extended thread tee (male-male-female)
- Material: Nickel-plated brass (CuZn39Pb3)
- Thread specification: M20×1.5 (male thread) / M20×1.5 (female thread)
- Seal type: Metal-to-metal sealing with O-ring backup
- Seal material: NBR (Nitrile) O-ring
- Temperature range: -20℃ to 150℃
- Pressure rating: 0.05-1.5 MPa (7-217 PSI)
- Surface treatment: Electroless nickel plating (8-12μm)
- Weight: 148g ±2%
- Dimensions: 72mm(L) × 50mm(W) × 38mm(H)
- Torque specification: 25-30 N·m (installation torque)
- Compliance: ISO 1179-1 standard
High-density L-shaped pneumatic fitting designed for space-constrained installations requiring extended reach. Features dual sealing (thread + O-ring) for leak-free performance in dynamic applications. Nickel plating provides corrosion resistance in humid environments.
Typical Applications:
- Pneumatic cylinder port connections in robotic arms
- Modular pneumatic circuit assembly lines
- Compressed air distribution in CNC machinery
- Instrumentation air systems in process control
- Vacuum line connections in packaging equipment
Installation note:
Apply PTFE tape to male threads using clockwise winding direction.
Avoid over-tightening - use torque wrench for precise installation.
Maximum angular deviation: ±3° from nominal position.
| Property | Property Value |
|---|---|
| sku | X-EPLL10M20 |
