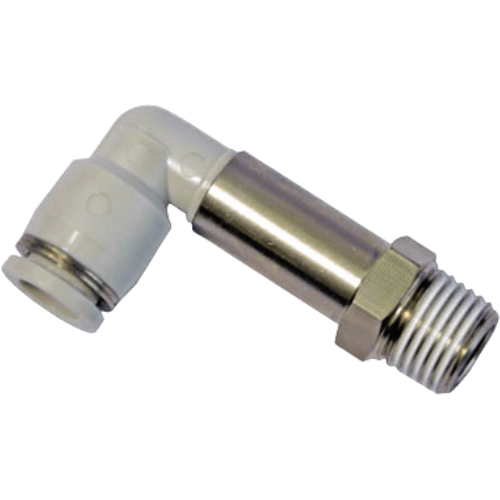

Airtac X-EPLL Connector - L-Type Extended Thread Two-Way X-EPLL401
$3.48
Regular price
$10.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPLL401
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPLL401 L-Type Extended Thread Tee Fitting Specifications
- Model: X-EPLL401
- Type: L-shaped extended thread tee (straight-through branch)
- Thread standard: NPT1/4 (BSPP1/4 optional)
- Material: Brass (nickel-plated surface)
- Seal material: NBR rubber O-ring
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃
- Proof pressure: 3.0 MPa
- Flow coefficient (Cv): 0.6
- Weight: 28g ±2g
- Dimensions: 45mm(L) × 16mm(W) × 28mm(H)
- Port-to-port length: 35mm (vertical branch)
- Thread engagement depth: 12mm (extended design)
- Surface roughness: Ra ≤3.2μm
- Certification: RoHS compliant
Precision-machined tee connector with extended L-shaped threading for enhanced leak resistance in high-vibration environments. The 360° rotatable branch port allows flexible piping layouts. Nickel plating provides corrosion protection for humid or chemical-exposed applications.
Typical Applications:
- Pneumatic tool air distribution systems
- Robotic arm end effector plumbing
- CNC machine air circuit branching
- Packaging line manifold extensions
- Semiconductor equipment gas lines
Installation note:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten).
For vertical mounting, position branch port downward to prevent debris accumulation.
Torque limit: 12-15 N·m.
| Property | Property Value |
|---|---|
| sku | X-EPLL401 |
