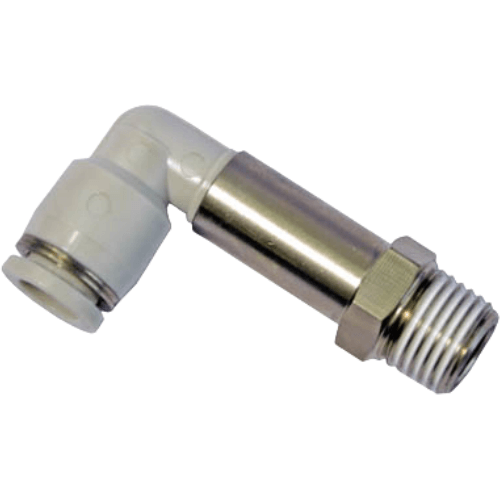

Airtac X-EPLL Connector - L-Type Extended Thread Two-Way X-EPLL4M6
$3.48
Regular price
$10.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPLL4M6
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPLL4M6 L-Shaped Extended Thread Elbow Tee Specifications
- Model: X-EPLL4M6
- Type: L-shaped extended thread 2-way connector
- Body material: Anodized aluminum alloy (AL6063-T5)
- Thread standard: Metric fine thread (M6×1.0)
- Port configuration: 2 female threaded ports (L-shaped flow path)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃
- Surface treatment: Clear chromate coating (3-5μm)
- Seal material: NBR (Nitrile) O-rings
- Torque resistance: ≤3 N·m installation torque
- Weight: 18±2 grams
- Dimensions: 24mm (L) × 24mm (W) × 28mm (H)
- Flow coefficient (Cv): 0.15
Precision-machined L-shaped pneumatic connector with extended thread engagement for enhanced sealing in confined spaces. Features anti-vibration grooves and corrosion-resistant coating, compatible with ISO 1179-2 standard fittings. Designed for 8-10 bar compressed air systems.
Typical Applications:
- Robotic arm pneumatic circuit branching
- CNC machine tool air line distribution
- Semiconductor manufacturing equipment
- Compact pneumatic valve manifold assemblies
- Packaging machine sensor air supply connections
Installation note:
Apply 242 thread sealant on male threads before assembly.
Tighten using 8mm open-end wrench on hex flats (do not exceed 2.5 N·m torque).
Align flow direction arrow with primary air path.
| Property | Property Value |
|---|---|
| sku | X-EPLL4M6 |
