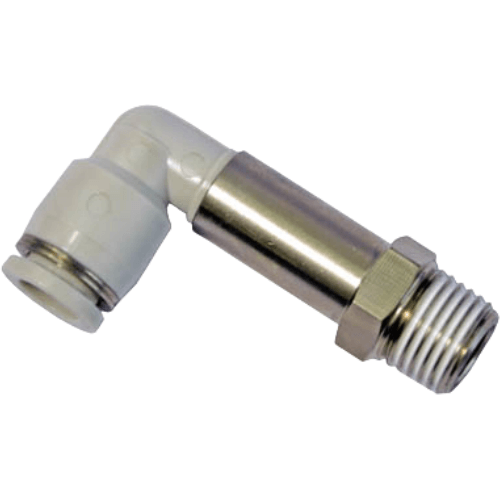

Airtac X-EPLL Connector - L-Type Extended Thread Two-Way X-EPLL601
$3.48
Regular price
$10.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPLL601
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPLL601 L-Type Extended Thread Two-Way Connector Specifications
- Model: X-EPLL601
- Type: L-shaped extended thread two-way connector (male thread)
- Thread standard: Metric (M5×0.8) or NPT 1/8" (customizable)
- Material: Brass with nickel plating (stainless steel optional)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: NBR rubber (FKM available for high-temp)
- Surface treatment: Electroless nickel plating (3-5μm thickness)
- Thread engagement length: 12mm (extended design)
- Weight: 22g ±0.5g
- Dimensions: 30mm (L) × 25mm (W) × 18mm (H)
- Tube compatibility: 4mm OD pneumatic tubing
- Torque rating: 1.2-1.5 N·m installation torque
- Compliance: RoHS compliant
Precision-engineered L-shaped pneumatic connector featuring corrosion-resistant nickel plating and 360° rotatable fitting design. The extended thread (12mm engagement) ensures secure sealing in high-vibration environments. Forged brass construction withstands repeated installations.
Typical Applications:
- Pneumatic cylinder port extensions
- Tool-free maintenance access in tight spaces
- Directional flow conversion in automation arms
- Vacuum system plumbing with limited clearance
- Modular pneumatic test benches
Installation protocol:
Apply thread sealant to male threads (PTFE tape not recommended).
Tighten using 12mm open-end wrench on hex base - DO NOT rotate elbow body.
Max 1/2 turn past finger-tight position.
Fluid compatibility: Compressed air, inert gases.
Not for use with hydrocarbons or phosphate ester fluids.
