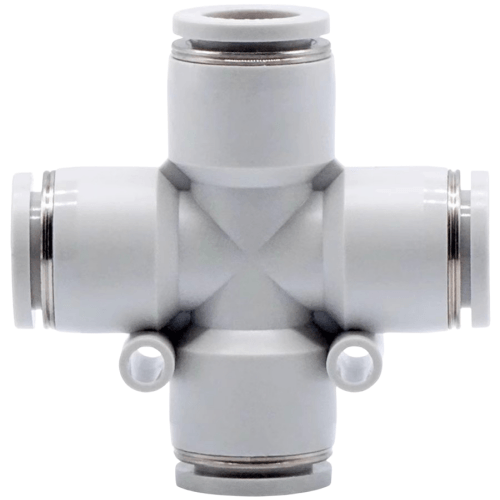

Airtac X-EPZA Cross Four-way Connector X-EPZA6
$3.48
Regular price
$10.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPZA6
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPZA6 Cross Fitting (Four-Way) Technical Details
- Model: X-EPZA6
- Type: Pneumatic cross connector (4-way)
- Material: PBT+GF (Polybutylene Terephthalate with 30% Glass Fiber)
- Thread Standard: Metric M5×0.8 (BSPP/NPT optional)
- Max Working Pressure: 1.0 MPa (145 psi)
- Burst Pressure: ≥3.0 MPa (435 psi)
- Temperature Range: -20℃ to +80℃ (-4°F to 176°F)
- Flow Rate: 350 NL/min (at 0.5 MPa)
- Weight: 18.5±0.5g
- Dimensions: 23.5mm(L) × 23.5mm(W) × 23.5mm(H) - cube structure
- Port Configuration: 4 female threaded ports (90° orthogonal)
- Seal Material: HNBR O-rings (high nitrile rubber)
- Surface Finish: Mold-textured anti-slip grip pattern
- Certification: RoHS compliant
Precision-engineered four-way pneumatic junction block with chemical-resistant composite construction. Features optimized internal flow channels (Ø2.8mm bore) for minimal pressure drop and bubble-tight sealing through dual O-ring design. Rated for 100,000+ connection cycles.
Primary Applications:
- Modular pneumatic circuit distribution in automation cells
- Tooling plate manifold systems for CNC fixtures
- Medical device gas line distribution hubs
- Laboratory equipment pneumatic logic networks
- Mobile machinery emergency venting junctions
Installation guidance:
Apply 0.3-0.5Nm torque during assembly. For vibration-prone environments,
use thread-locking adhesive on male fittings. Avoid overtightening -
maximum deformation allowance 0.15mm at port flanges.
| Property | Property Value |
|---|---|
| sku | X-EPZA6 |
