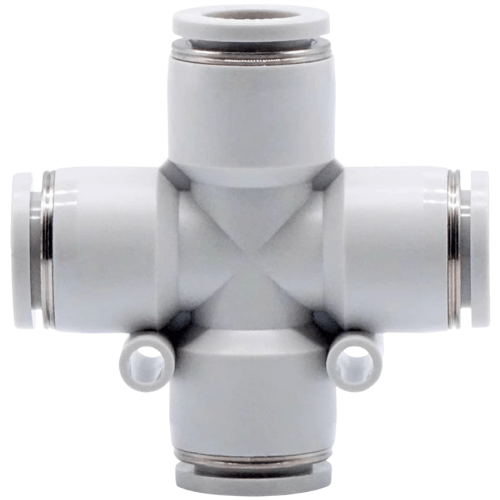

Airtac X-EPZA Cross Four-way Connector X-EPZA8
$3.63
Regular price
$11.13
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPZA8
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPZA8 Cross Fitting Technical Details
- Model: X-EPZA8
- Type: Pneumatic cross connector (4-way equal)
- Material: Brass (CuZn39Pb3) with nickel plating
- Port size: PT1/8 (BSPP) x 4 ports
- Thread depth: 10mm ±0.3mm
- Max working pressure: 1.5 MPa (15 bar)
- Burst pressure: ≥6 MPa
- Temperature range: -5℃ to 90℃
- Seal material: NBR (Nitrile) O-rings
- Surface roughness: Ra ≤1.6μm
- Compatibility: Air, inert gases, vacuum
- Certifications: RoHS compliant
- Weight: 28g ±2g
- Dimensions: 22mm(L) × 22mm(W) × 22mm(H)
Precision-machined cross connector with 360° rotatable ports for flexible piping layouts. Features leak-proof tapered thread design with integrated dust-resistant seals. Anodized finish prevents corrosion in humid environments. Compatible with all standard 1/8" BSPP fittings.
Common Applications:
- Branching pneumatic circuits in automation equipment
- Pressure distribution in packaging machinery
- Vacuum system manifolds
- Air tool plumbing networks
- Laboratory gas line distribution
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads (grade B). Tighten to 1.2-1.5 N·m torque.
Avoid overtightening - sealant deformation occurs beyond 2.0 N·m.
Test at 0.8 MPa for 5 mins post-installation.
| Property | Property Value |
|---|---|
| sku | X-EPZA8 |
