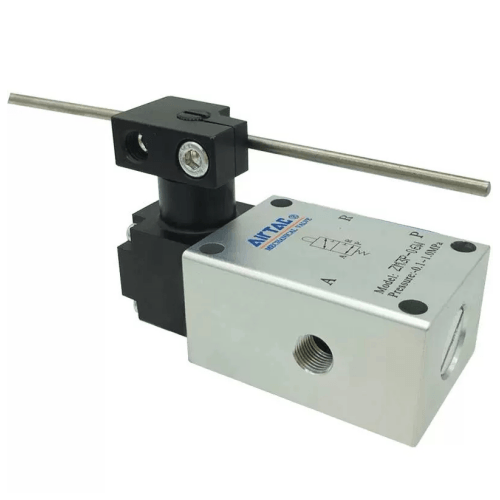

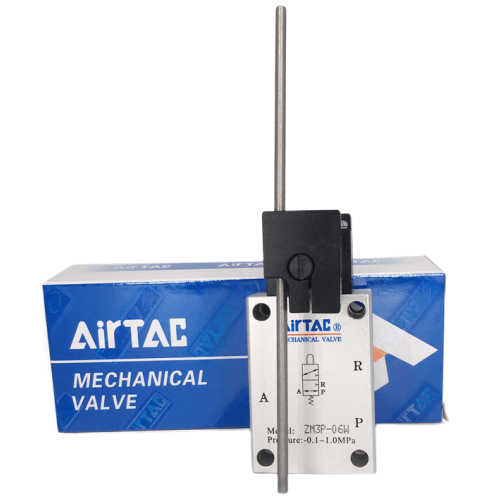

Airtac ZM3P Adjustable Stylus Mechanical Valve ZM3P06W
1. Actuation direction adjustment exclusive to standard configurations (angular versions not applicable)
2. Roller mountable on lever's inner side
3. Reconfigurable lever mounting positions
4. Modular head orientation adjustment
5. Contact pin with ±5mm length adjustment range
Category: Mechanical Valves | Brand: AIRTC | Series: ZM3P
AirTAC ZM3P Adjustable Needle-Type Mechanical Valve ZM3P06W Specifications
- Model: ZM3P06W
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.8 MPa
- Flow capacity: 650 l/min (ANR)
- Trigger force: 3-8N adjustable
- Body material: Brass with electroless nickel plating
- Seal material: NBR (Nitrile rubber)
- Operating temperature: -20℃ to 80℃
- Weight: 215g ±5g
- Dimensions: 58mm(L) × 36mm(W) × 42mm(H)
- Actuation stroke: 4mm ±0.3mm
- Repeat accuracy: ±0.1mm
- Contact rating: 1A 24VDC (gold-plated contacts)
Precision mechanical valve featuring a patented dual-spring needle adjustment system for micro-flow control. The chrome-plated stainless steel trigger pin provides 50,000+ cycle durability. Includes dust-resistant boot seal and anti-vibration locknut. Requires 5-40μm filtered compressed air with ISO 8573-1:2010 Class 3 air quality.
- Precision pneumatic counter systems
- Semiconductor wafer handling robots
- Textile machinery thread tension control
- Automated liquid dispensing systems
- Laboratory gas chromatography equipment
Adjustment procedure:
Rotate hex nut clockwise to increase trigger force (max 8N).
Use 2mm hex key for spring preload calibration.
Lubricate quarterly with ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | ZM3P06W |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
