Airtac P-SCT Repair Kit P-SCT80N-R1
AirTAC P-SCT80N-R1 Cylinder Repair Kit Technical Details
- Model: P-SCT80N-R1
- Compatible Series: SCT Standard Cylinders (80mm bore)

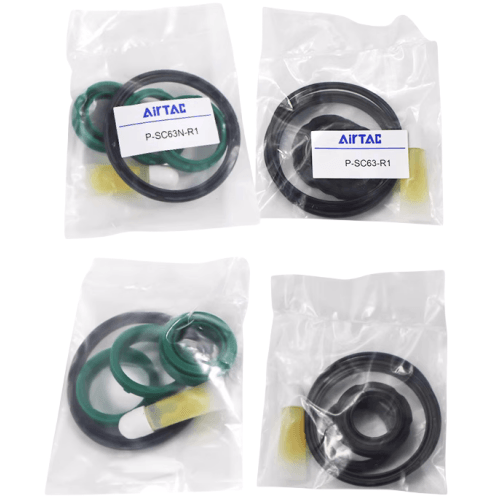

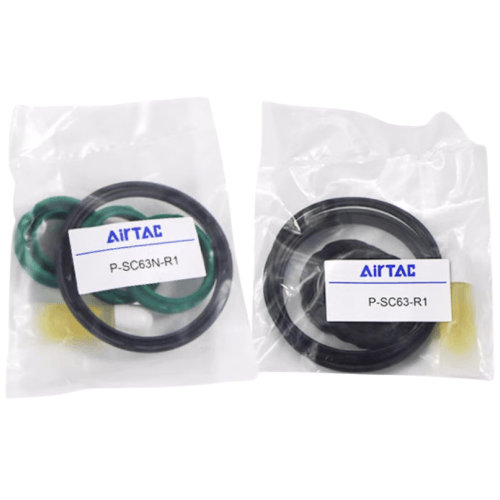

- Kit Contents: Piston seals, rod seals, wear bands, O-rings, cushion rings
- Material Composition:
- Primary Seals: Polyurethane (PU)
- Backup Rings: NBR Nitrile Rubber
- Wear Pads: Glass-filled PTFE
- Temperature Range: -20℃ to 100℃ (continuous operation)
- Pressure Rating: 0.05-1.0 MPa (max 1.5 MPa intermittent)
- Chemical Resistance: Compatible with ISO VG32 hydraulic oil & most industrial lubricants
- Package Weight: 520g ±10g (including anti-corrosion packaging)
- Dimensions: 210mm(L) × 145mm(W) × 55mm(H) (vacuum-sealed tray)
- Storage Requirements: Dry environment below 40℃/70% RH
- Compliance: RoHS 2011/65/EU
Complete overhaul kit for SCT series ISO pneumatic cylinders, containing precision-molded replacement components that restore original equipment performance. Features laser-etched orientation markers on critical seals for error-proof installation. Includes factory-grade lubrication pre-applied to sliding surfaces.
- Industrial Applications:
- Plastic injection molding machine clamp cylinders
- Automotive welding fixture actuators
- Packaging line pusher mechanisms
- Maintenance Protocol:
- Recommended replacement cycle: 5 million cycles or 2 years
- Mandatory replacement after cylinder impact events
- Requires ISO 8573-1 Class 3 compressed air quality
Installation criticals:
Use torque-controlled tools (3-5Nm range) for end cap fasteners.
Perform 50-100 test cycles at reduced pressure (0.3MPa) before full operation.
