Airtac SC32 Standard Cylinder SC32X100

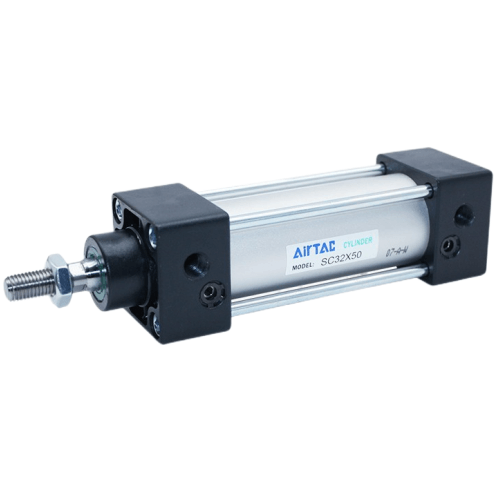

The AirTAC Airtac SC32 Standard Cylinder SC32X100 is a genuine double-acting standard air cylinder with a Ø32mm bore and 100mm stroke, PT1/8 air ports and adjustable end cushioning. It is used for push, pull, lift and clamp motion in industrial automation.
- BoreØ32 mm
- Stroke100 mm
- Port sizePT1/8
- Acting typeDouble acting
- Rod threadM10×1.25
- CushionAdjustable, 21 mm
About the Airtac SC32 Standard Cylinder SC32X100
The SC32X100 is a compact double-acting tie-rod cylinder delivering a push force of 402 N at 0.5 MPa (724 N at 0.9 MPa). Its 100 mm stroke suits short linear transfer and clamping tasks where space is tight.
Built with a 12 mm diameter piston rod and M10x1.25 rod thread, the cylinder body measures 140 mm in length (A dimension). The adjustable pneumatic cushion (21 mm) decelerates the piston smoothly at end-of-stroke, reducing impact noise and wear.
Airtac SC32 Standard Cylinder SC32X100 Technical Specifications
| Model | Airtac SC32 Standard Cylinder SC32X100 |
|---|---|
| Series | SC standard tie-rod cylinder |
| Bore size | Ø32 mm |
| Stroke | 100 mm |
| Acting type | Double acting |
| Port size | PT1/8 |
| Rod thread | M10×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Adjustable, 21 mm |
| Max stroke | Up to 1000 mm |
Specifications follow the official AirTAC SC series datasheet. Operating pressure 0.15–1.0 MPa, proof pressure 1.5 MPa, temperature −20 to +70 °C. Confirm against the product label before installation. Thread options: PT (standard) / G.
Theoretical Output Force (Ø32mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 402 N | 346 N |
| 0.7 MPa | 563 N | — |
| Max (approx.) | 82 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac SC32 Standard Cylinder SC32X100
| SC | Standard tie-rod cylinder series. |
|---|---|
| 32 | Bore size in mm. |
| ×100 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related variants: SCD (double rod), SCJ (adjustable stroke), SCT (multi-position). Seals: TPU standard / H = Viton / N = NBR. Thread: blank = PT, G = G thread.
Where the Airtac SC32 Standard Cylinder SC32X100 Is Used
Small Part Clamping
Light clamping fixtures in electronics or medical device assembly where 402 N force prevents part movement without crushing.
Diverter Gates
Actuating small diverter gates on narrow conveyor lines handling lightweight packages or components.
Lab Automation
Fluid dispensing and test-tube handling in laboratory automation equipment requiring clean, repeatable motion.
Is the Airtac SC32 Standard Cylinder SC32X100 the Right Cylinder?
For higher force, step up to the SC40 bore providing 628 N push at 0.5 MPa. This SC32X100 is a basic configuration with PT1/8 ports and no magnet. When replacing an existing unit, match the bore, stroke, PT port thread, and ensure the mounting style aligns with your bracket setup.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and mounting space
- ✓ Port/thread type (PT/NPT/G)
- ✓ Magnet (-S) for sensors?
- ✓ Side load — consider a guided cylinder
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Adjust end cushion screws for smooth stops.
- check Use correct mounting accessory (FA/FB/CA/CB/LB/TC).
- check Installation by qualified personnel per AirTAC docs.
Airtac SC32 Standard Cylinder SC32X100 FAQ
At 0.5 MPa the push force is 402 N, and at 0.7 MPa it reaches 563 N. The maximum theoretical force at 1.0 MPa is 82 kgf.
This SC32X100 does not have the -S suffix, so it lacks a built-in magnet. To use CMSG/DMSG sensors, order the SC32X100-S variant which includes the magnetic piston ring.
