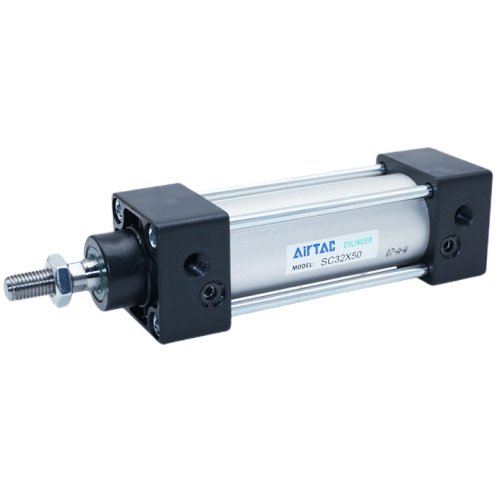

Airtac SC32 Standard Cylinder SC32X220SH
The AirTAC Airtac SC32 Standard Cylinder SC32X220SH is a genuine double-acting standard air cylinder with a Ø32mm bore and 220mm stroke, PT1/8 air ports and adjustable end cushioning. It is used for push, pull, lift and clamp motion in industrial automation.
- BoreØ32 mm
- Stroke220 mm
- Port sizePT1/8
- Acting typeDouble acting
- Rod threadM10×1.25
- CushionAdjustable, 21 mm
About the Airtac SC32 Standard Cylinder SC32X220SH
The SC32X220SH is a double-acting pneumatic cylinder delivering 402 N of push force at 0.5 MPa, scaling to 724 N at the maximum operating pressure of 0.9 MPa. With a 220 mm stroke and a 12 mm diameter piston rod, it suits light-duty pushing, clamping, and sorting tasks where space is limited.
This model is configured with a built-in magnet (-S) for direct mounting of CMSG/DMSG/EMSG sensors, enabling rod-position feedback without external brackets. The -H suffix specifies Viton (FKM) seals, shifting the operating temperature range to 0–150 °C for use in hot environments or with aggressive media.
Airtac SC32 Standard Cylinder SC32X220SH Technical Specifications
| Model | Airtac SC32 Standard Cylinder SC32X220SH |
|---|---|
| Series | SC standard tie-rod cylinder |
| Bore size | Ø32 mm |
| Stroke | 220 mm |
| Acting type | Double acting |
| Port size | PT1/8 |
| Rod thread | M10×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Adjustable, 21 mm |
| Max stroke | Up to 1000 mm |
Specifications follow the official AirTAC SC series datasheet. Operating pressure 0.15–1.0 MPa, proof pressure 1.5 MPa, temperature −20 to +70 °C. Confirm against the product label before installation. Thread options: PT (standard) / G.
Theoretical Output Force (Ø32mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 402 N | 346 N |
| 0.7 MPa | 563 N | — |
| Max (approx.) | 82 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac SC32 Standard Cylinder SC32X220SH
| SC | Standard tie-rod cylinder series. |
|---|---|
| 32 | Bore size in mm. |
| ×220 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related variants: SCD (double rod), SCJ (adjustable stroke), SCT (multi-position). Seals: TPU standard / H = Viton / N = NBR. Thread: blank = PT, G = G thread.
Where the Airtac SC32 Standard Cylinder SC32X220SH Is Used
Hot-Zone Sorting Gate
Viton seals allow the SC32X220SH to operate reliably in 0–150 °C environments, such as diverting hot-melt glue components or small baked goods on a conveyor.
Sensor-Monitored Clamping
The built-in magnet and 220 mm stroke suit light assembly fixtures where CMSG sensors confirm jaw position before a cycle starts, preventing crashes.
High-Temp Part Ejection
Use this cylinder to eject cured parts from heated molds. The 724 N max force at 0.9 MPa handles sticky demolding, while Viton seals resist heat degradation.
Is the Airtac SC32 Standard Cylinder SC32X220SH the Right Cylinder?
For higher force, step up to the 40 mm bore SC40 series, which provides 628 N of push force at 0.5 MPa. This SC32 model uses PT1/8 ports and an M10x1.25 rod thread. When replacing, match bore, stroke, PT port thread, the -S magnet option for sensor compatibility, and the -H high-temperature seal material to ensure identical performance.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and mounting space
- ✓ Port/thread type (PT/NPT/G)
- ✓ Magnet (-S) for sensors?
- ✓ Side load — consider a guided cylinder
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Adjust end cushion screws for smooth stops.
- check Use correct mounting accessory (FA/FB/CA/CB/LB/TC).
- check Installation by qualified personnel per AirTAC docs.
Airtac SC32 Standard Cylinder SC32X220SH FAQ
At the standard 0.7 MPa operating pressure, the push force is 563 N and the pull force is approximately 483 N. At the maximum operating pressure of 0.9 MPa, the push force reaches 724 N.
No. The SC series is a tie-rod cylinder that is physically shorter than an ISO 15552 profile cylinder, so mounting dimensions are not interchangeable. It replaces another AirTAC SC32 cylinder with the same bore, stroke, PT ports, magnet option, and Viton seals.
