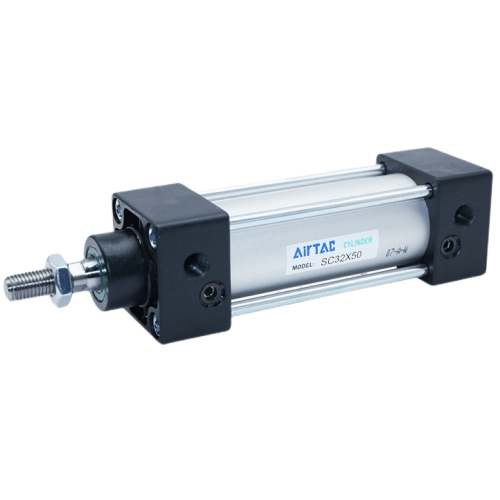

Airtac SC32 Standard Cylinder SC32X400SN
The AirTAC Airtac SC32 Standard Cylinder SC32X400SN is a genuine double-acting standard air cylinder with a Ø32mm bore and 400mm stroke, PT1/8 air ports and adjustable end cushioning. It is used for push, pull, lift and clamp motion in industrial automation.
- BoreØ32 mm
- Stroke400 mm
- Port sizePT1/8
- Acting typeDouble acting
- Rod threadM10×1.25
- CushionAdjustable, 21 mm
About the Airtac SC32 Standard Cylinder SC32X400SN
The SC32X400SN is a double-acting pneumatic cylinder with a 32 mm bore and 400 mm stroke, delivering a push force of 402 N at 0.5 MPa (up to 724 N at 0.9 MPa). Its 12 mm diameter piston rod and 21 mm adjustable air cushion provide reliable deceleration for moderate loads in compact automation.
This model includes a built-in magnet (-S) for direct mounting of CMSG/DMSG/EMSG sensors, enabling precise end-of-stroke detection without external brackets. The NBR seal (-N) offers consistent performance across the standard temperature range of -20 to +70 °C, making it a solid choice for general industrial tasks.
Airtac SC32 Standard Cylinder SC32X400SN Technical Specifications
| Model | Airtac SC32 Standard Cylinder SC32X400SN |
|---|---|
| Series | SC standard tie-rod cylinder |
| Bore size | Ø32 mm |
| Stroke | 400 mm |
| Acting type | Double acting |
| Port size | PT1/8 |
| Rod thread | M10×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Adjustable, 21 mm |
| Max stroke | Up to 1000 mm |
Specifications follow the official AirTAC SC series datasheet. Operating pressure 0.15–1.0 MPa, proof pressure 1.5 MPa, temperature −20 to +70 °C. Confirm against the product label before installation. Thread options: PT (standard) / G.
Theoretical Output Force (Ø32mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 402 N | 346 N |
| 0.7 MPa | 563 N | — |
| Max (approx.) | 82 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac SC32 Standard Cylinder SC32X400SN
| SC | Standard tie-rod cylinder series. |
|---|---|
| 32 | Bore size in mm. |
| ×400 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related variants: SCD (double rod), SCJ (adjustable stroke), SCT (multi-position). Seals: TPU standard / H = Viton / N = NBR. Thread: blank = PT, G = G thread.
Where the Airtac SC32 Standard Cylinder SC32X400SN Is Used
Small Part Sorting
The 400 mm stroke and integrated sensor magnet make this cylinder ideal for pushing or diverting lightweight packages on conveyor lines, with reliable end-of-stroke confirmation.
Assembly Fixture Clamping
Delivers 724 N of clamping force at 0.9 MPa, suitable for holding small components during gluing, welding, or screw-driving operations in automated assembly cells.
Lab Automation
The NBR seals and compact tie-rod body suit repetitive pick-and-place tasks in laboratory analysers, where a 400 mm reach is needed to transfer samples between stations.
Is the Airtac SC32 Standard Cylinder SC32X400SN the Right Cylinder?
For applications needing more force, stepping up to the 40 mm bore SC40 series provides 628 N of push force at the same 0.5 MPa pressure. If your load is lighter and speed is critical, the 32 mm bore remains an excellent fit for its fast 30-800 mm/s speed range.
With a 400 mm stroke, ensure the load is guided externally if side forces are present; the 12 mm rod can experience bending under high side loads. When replacing an existing cylinder, match the 32 mm bore, 400 mm stroke, PT1/8 port thread, NBR seal, and the built-in magnet configuration to guarantee drop-in compatibility.
