Airtac SC32 Standard Cylinder SC32X8S

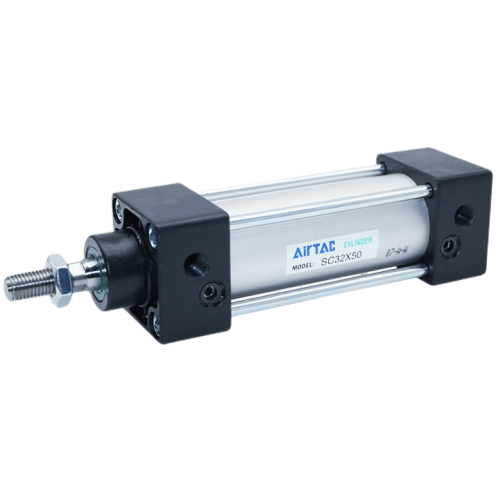

The AirTAC SC32 Standard Cylinder SC32X8S is a genuine double-acting standard air cylinder with a Ø32mm bore and 8mm stroke, PT1/8 air ports and adjustable end cushioning. It is used for push, pull, lift and clamp motion in industrial automation.
- BoreØ32 mm
- Stroke8 mm
- Port sizePT1/8
- Acting typeDouble acting
- Rod threadM10×1.25
- CushionAdjustable, 21 mm
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac SC32 Standard Cylinder SC32X8S
The AirTAC SC32X8S is a compact double-acting tie-rod cylinder with a 32 mm bore and a very short 8 mm stroke, ideal for ejector, clamping, and sorting tasks where space is tight. Its 12 mm diameter piston rod and PT1/8 ports keep the footprint small while delivering 402 N of push force at 0.5 MPa (563 N at 0.7 MPa).
The built-in magnet (denoted by the -S suffix) allows CMSG, DMSG, or EMSG sensors to mount directly on the barrel for reliable end-of-stroke detection. The adjustable air cushion (21 mm length) decelerates the piston smoothly, and the standard TPU seals provide a working range of -20 to +70 °C.
Airtac SC32 Standard Cylinder SC32X8S Technical Specifications
| Model | Airtac SC32 Standard Cylinder SC32X8S |
|---|---|
| Series | SC standard tie-rod cylinder |
| Bore size | Ø32 mm |
| Stroke | 8 mm |
| Acting type | Double acting |
| Port size | PT1/8 |
| Rod thread | M10×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Adjustable, 21 mm |
| Max stroke | Up to 1000 mm |
Specifications follow the official AirTAC SC series datasheet. Operating pressure 0.15–1.0 MPa, proof pressure 1.5 MPa, temperature −20 to +70 °C. Confirm against the product label before installation. Thread options: PT (standard) / G.
Theoretical Output Force (Ø32mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 402 N | 346 N |
| 0.7 MPa | 563 N | — |
| Max (approx.) | 82 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac SC32 Standard Cylinder SC32X8S
| SC | Standard tie-rod cylinder series. |
|---|---|
| 32 | Bore size in mm. |
| ×8 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related variants: SCD (double rod), SCJ (adjustable stroke), SCT (multi-position). Seals: TPU standard / H = Viton / N = NBR. Thread: blank = PT, G = G thread.
Where the Airtac SC32 Standard Cylinder SC32X8S Is Used
Part Ejection
The 8 mm stroke and 402 N push force quickly eject small plastic or metal parts from a die or conveyor, with magnetic sensors confirming each cycle.
Compact Clamping
Short-stroke clamping of thin workpieces in assembly jigs. The 32 mm bore provides ample force without requiring a bulky cylinder body.
Sorting Gates
Operates a small diverter gate on a packaging line. The -S magnet lets a CMSG sensor verify gate position at both ends of the 8 mm travel.
Is the Airtac SC32 Standard Cylinder SC32X8S the Right Cylinder?
Choose the SC32X8S for light push-eject or sorting stations that need magnetic piston sensing in a very short stroke. If you require more force, step up to the 40 mm bore (628 N at 0.5 MPa). For strokes longer than 300 mm on a 32 mm bore, consider an external guide to protect the 12 mm rod from side-load bending. When replacing an existing cylinder, match bore, stroke, PT1/8 port thread, the built-in magnet (-S), and the basic (no bracket) mounting configuration.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and mounting space
- ✓ Port/thread type (PT/NPT/G)
- ✓ Magnet (-S) for sensors?
- ✓ Side load — consider a guided cylinder
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Adjust end cushion screws for smooth stops.
- check Use correct mounting accessory (FA/FB/CA/CB/LB/TC).
- check Installation by qualified personnel per AirTAC docs.
Airtac SC32 Standard Cylinder SC32X8S FAQ
At 0.5 MPa it delivers 402 N pushing and 345 N pulling. At the maximum operating pressure of 0.9 MPa, push force reaches 724 N. The theoretical maximum at 1.0 MPa is 82 kgf.
Yes. The -S suffix means a magnet is built into the piston, so AirTAC CMSG (reed) or DMSG/EMSG (solid-state) sensors can be clamped directly onto the barrel to detect piston position.
Authorized Export Seller
Genuine AirTAC parts produced by AirTAC factory.
1-Year Warranty
Covers non-human-caused product damage.
Fast Dispatch
Standard models are processed and dispatched in 3-5 business days.
Fast Reply
Most inquiries answered within 7-8 hours.
Request a Quote for Airtac SC32 Standard Cylinder SC32X8S
Send us the quantity and destination. We confirm price, stock and lead time — usually within 7-8 hours.
